Model Number:
|
US II 009
|
Material
|
PVC
|
Description:
|

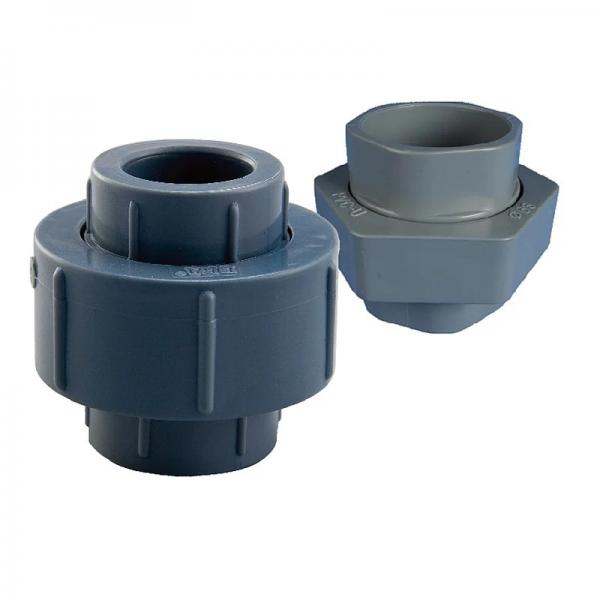

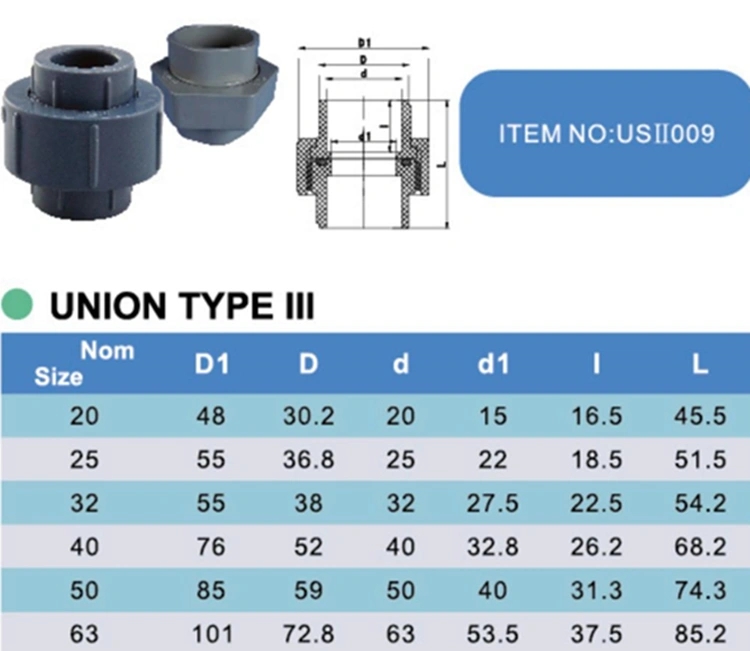

UNION TYPE Ⅲ
|
Standard
|
NBR 5648
|
Temperature:
|
Max 60℃ /140℉
|
Working Pressure:
|
PN10 ,10Bar, 1.0Mpa
|
Size:
|
20--63MM
|
Certificate:
|
CE
|
Connection:
|
Socket or Thread
|
Color:
|
Blue
|
PVC is suitable for use at temperatures from 0ºC to 60ºC at a wide range of operating pressures, depending upon the system chosen. It is lightweight and easy to install, using cold solvent welded joints which require no special tools.
PVC-U (Unplasticised polyvinyl chloride) is one of the most popular thermoplastic materials used for pipework installations.
Scope:
PVC-U MM sized fittings are available in sizes from 10mm to 500mm and in a choice of pressure ratings from 6 Bar to 16 bar.
PVC-U allows the safe transportation of many acids, alkalis and chemical concentrates
without fear of corrosion and environmental pollution.
Specification:
PVC-U is lightweight and is extremely easy to install which can save both time
and money on any given project when compared to other, more traditional
pipework materials.
PVC-U allows the safe transportation of many acids, alkalis and chemical concentrates
without fear of corrosion and environmental pollution.
Fields of application:
Piping networks for irrigation, normal water transport for industry.
|
