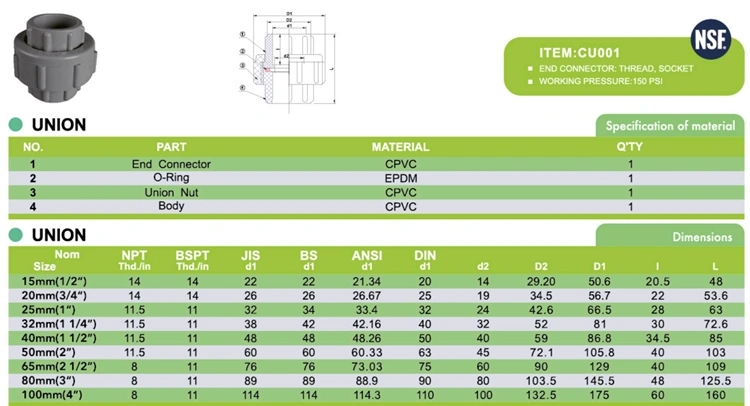

Model Number:
|
CU001
|
Material
|
CPVC
|
Description:
|
Union
|
Standard
|
ASTM F1970
|
Temperature:
|
Max 82.2℃ /180℉
|
Working Pressure:
|
PN10 ,10Bar, 1.0Mpa
|
Size:
|
1/2’’—2’’
|
Certificate:
|
NSF/UPC
|
Connection:
|
Socket or Thread
|
Color:
|
Light Grey
|
System:CPVC valves System
Valve pressure rating 150 psi at 73°F water non-shock full-port, Maximum service temperature 180°F, Full port, EPDM O-rings, Includes both socket and female NPT thread end connections.
Scope:
Our TUBVs are top quality with easy-to-remove union ends for valve servicing.
The CPVC Solvent-Weld Ball Valve can be used for various applications such as: water supply, building, housing, factory and marine equipment, water and waste treatment, chemical plants, agriculture, irrigation, and multiple industrial uses.
Specification:
CPVC valves shall conform to ISO 4422-4. ASTM F1970-05. CPVC valves shall be manufactured as a system and be the product of one manufacturer.
|
